Stainless Steel Solar Water Heater（Non-pressure Solar Water Heater ）
Inner Tank: Stainless Steel 304 2B/316L
Outer Tank: Stainless Steel 201/304/316L
Insulation layer: 50-60mm thick high density polyurethane foam.
Vacuum Tube: 58-1800mm three target golden purple solar vacuum tube
Bracket：Stainless Steel 201/304 or Aluminium alloy
Get an inquiry
The Solar Water Heater for Bathroom is one of the popular solar system devices that utilize solar energy. The solar water heater is a cheap yet cost-effective way to supply hot water for your home, and it also uses solar radiation or sunshine as fuel to heat water. We are blessed with unlimited solar power at no cost.
Though the solar water heater or solar water heating system is the cheapest method of heating water, we don’t require to pay for the heat of the sun. Solar Water Heater for Bathroom not only for Bathroom, It also can be used for homes, hospitals, nursing homes, community centers, hotels, dairy plants, ashrams, hostels, swimming pools, canteens, and industries.
Inner Tank：Stainless Steel 304 2B/316L
Outer Tank：Stainless Steel 201/304/316L
Insulation layer：50-60mm thick high density polyurethane foam.
Vacuum Tube：58-1800mm three target golden purple solar vacuum tube
Frame ：Stainless Steel 201 1.0 to 1.2 mm thick/Stainless steel 304 1.0 to 1.2mm thick/Aluminum alloy 1.5 to 1.8mm thick
Frame Angle ：( 45/38/27/15) degrees suitable to flat and slopping roof
Tank Diameter：460mm-500mm
Warranty：5 Years
Delivery Time：Delivery time within 10 days after receiving deposit
Packing：Standard Export Packing
Payment Term ：TT
Other free services ：Free installation manual in English,put logo on tank and tubes

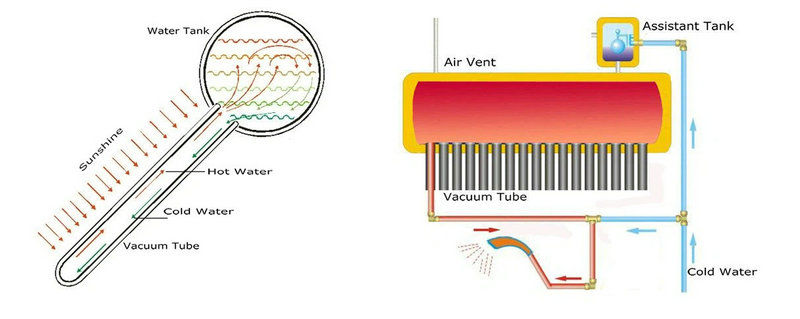

Non-pressure Solar Water Heater -Working Theory：
The non-pressure solar water heater is a kind of solar water heater which uses the vacuum tube with high absorptivity and low emissivity to convert the absorbed solar radiation into heat energy. It uses the characteristics of large cold-water ratio and small proportion of hot water to form a natural circulation of cold water from top to bottom and hot water from bottom to top in the vacuum tube, which gradually increases the temperature of the whole water and reaches a certain temperature.
