SUS316L Swimming Pool Solar Collector（ Swimming Pool Solar Collector）
— Inner Tank: Stainless Steel 316L
— Outer Tank: SUS304
— Insulation layer: 40mm thick high density polyurethane foam
— Bracket: Aluminum Alloy
— Specification: 10-36tubes
Description：
The pool collector is a type of non-pressurized solar collector. The only difference is that its core is made of stainless steel with a good corrosion resistance grade. It is not afraid of corrosion from high-salt and high-chlorine water.
Technical Parameters：
Inner Tank ：Stainless Steel 3016L
Outer Tank ：SUS304
Insulation layer ：40mm thick high density polyurethane foam
Bracket ：Aluminum Alloy
Specification ：10-36tubes
Rated Working Pressure ：0.5 Bar
Warranty ：5years
Packing ：Standard Export Packing
Payment Term ：TT
Other free services ：Free installation manual in Enalish,put logo on solar collector
Delivery Time ：Delivery time within 10 days after receiving deposit

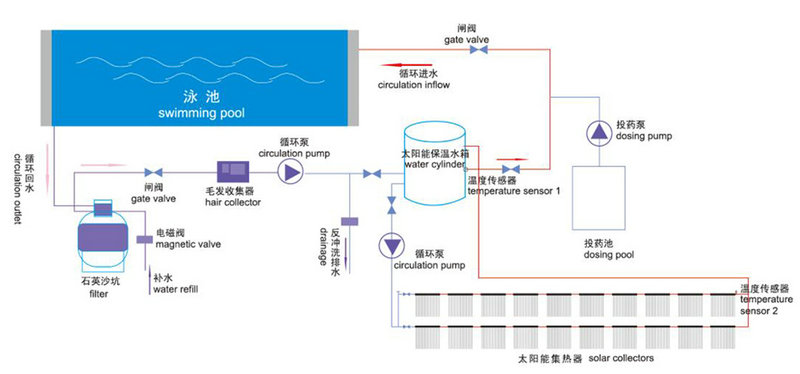

Swimming Pool Solar Collector Working Principle ：
The solar thermal collector collects solar energy through solar vacuum tubes to heat the water in the collector. When the intelligent controller detects that the collector temperature T1 is 5 degrees Celsius higher than the water tank temperature T2, the circulation pump automatically starts to bring the hot water in the collector to the water tank, and the cold water enters the solar collector, and the cycle repeats to heat the water in the water tank.
Specialty
The core material has high corrosion resistance and can be used effectively in swimming pools with high salt and high chlorine water.
