Flat Plate Pressurized Solar Collector（Pressurized Solar Collector）
— Core Material: All copper core
— Coating：Black/Blue
— Cover Sheet: Texture tempered glass 3.2mm
— Frame：Aluminum Alloy
— Specification: 1500*1000*80mm，2000*1000*80mm，2000*1250*80mm，2000*1500*80mm
Description

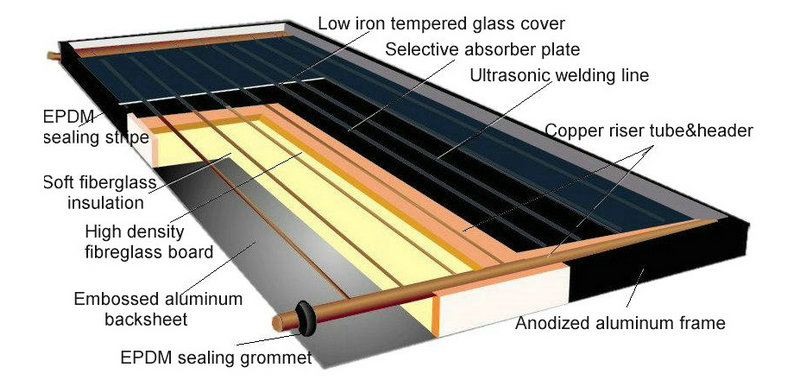

Flat plate solar collectors are mainly composed of the following parts: Header Tube, Riser tube, heat absorbing film, tempered glass, and frame.
Because of its simple installation and good mechanical impact resistance, it is highly praised by some customers.
Technical Parameters
Cover Sheet ：Texture tempered glass 3.2mm
Core Material ：All copper core
Coating ：Black/Blue
Absorber Plate ：All copper T2, δ=0.15mm
Header Tube ：All copper T2, Φ22*0.6mm
Riser tube ：All copper T2, Φ8*0.5mm
Jointing ：Ultrasonic welding/laser welding
Insulation ：Fiber glass 50mm
Casing ：Aluminum alloy frame, Embossed aluminum black sheet, Anti-aging elastic metal sealing
Test Pressure ：11.0 Bar
Flat Plate Pressurized Solar CollectorWorking Principle：
The coated heat-absorbing film absorbs heat and conducts it to the riser tube, and the water or medium is heated when passing through the riser tube.
Specialty
Easy to install and almost maintenance-free.
High resistance to mechanical shock.
