Split Flat Plate Solar Water Heater（Split Solar Water Heater ）
— Inner Tank: Stainless Steel 304 2B/316L
— Heat-exchange Coil: Double（Or Single） heat-exchange coil （SUS304/SUS316L/Red copper）
— Outer Tank: Galvanized steel (SUS201, SUS304, SUS316 are also available)
— Insulation layer: 50-100mm thick high density polyurethane foam
— Flat Plate: Black/Blue coating ,All copper, Size(mm) 2000*1000*80/2000*1250*80/2000*1500*80
— Solar Pump Station & Expansion vessel: Pump station, high pressure expansion vessel 5L-50L
— Collector Bracket: Gray/ black aluminium alloy 1.8mm, universal bracket suitable for slope/ flat roof or wall installation
— Accessories: Thermostat electrical heater with regulator, Anode magnesium, T/P & Safety valve, copper connectors
— Rated Working Pressure: 7.0 Bar
— Anti-freezing Weather: < (-)40 ℃
Description
The split pressurized falt plate solar water heater consists of pressurized water tank, flat plate solar collector, working pump station, expansion tank, etc. It is suitable for high-end residences such as villas. The solar collector can be installed on the roof and the water tank can be installed in the attic or basement. It is popular in Europe and the United States. The water tank can also be connected to other heat sources such as heat pumps or gas boilers. System capacity range: 100-1000L.
Product Parameter
Inner Tank：Stainless Steel 304 2B/316L
Heat-exchange Coil：Double（Or Single） heat-exchange coil （SUS304/SUS316L/Red copper）
Outer Tank：Galvanized steel (SUS201, SUS304, SUS316 are also available)
Insulation layer：50-100mm thick high density polyurethane foam
Flat Plate：Black/Blue coating ,All copper, Size(mm) 2000*1000*80/2000*1250*80/2000*1500*80
Solar Pump Station & Expansion vessel：Pump station, high pressure expansion vessel 5L-50L
Collector Bracket：Gray/ black aluminium alloy 1.8mm, universal bracket suitable、for slope/ flat roof or wall installation
Accessories：Thermostat electrical heater with regulator, Anode magnesium、T/P & Safety valve, copper connectors
Rated Working Pressure：7.0 Bar
Anti-freezing Weather：< (-)40 ℃
Warranty：5years
Packing：Standard Export Packing
Payment Term：TT
Other free services：Free installation manual in Enalish,put logo on tank
Delivery Time：Delivery time within 10 days after receiving deposit

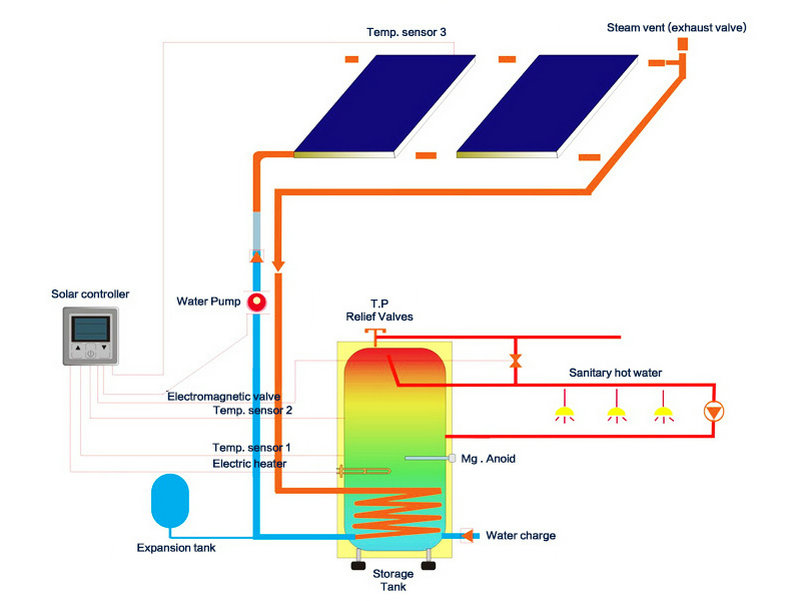

Split Flat Plate Solar Water Heater-Working Theory：
— The solar collector absorbs solar energy and transmits it to the solar water heatertank throuan circulation
— When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically
— The circulation pump makes heat-conducting liquid circulate automatically
— The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
— When the temperature diference between solar colector and heat pipe solar water heaters tank doesn’t reach the set value, the circulationpump will be shut automatically
— In case the temperature of the water tank does not reach max, Electric heating element will start to work automaticallv
Specialty
The solar collector can be installed on the roof and the water tank can be installed in the attic or basement.
Only the solar collector on the roof has no water tank, which is small and beautiful.
It can connect with water tap and work automatically with pressure0.6Mpa, bringing enjoyable washing experience.
Safety: P/T valve would release pressure and temperature to protect tank.
