Stainless Steel Integrated Flat Plate Solar Water Heater（Open Loop Flat Plate Solar Water Heater-Integrated Flat Plate Solar Water Heater）
— Inner Tank: Stainless Steel 304 2B/316L
— Outer Tank: Stainless Steel 201/304/316L
— Insulation layer: 50-60mm thick high density polyurethane foam
— Flat Plate: Copper & aluminum welding, Black chrome or Blue titanium coating, ultra white low iron cloth pattern tempered glass, thickness 3.2mm, Glass wool insulation
— Bracket：Stainless Steel 201/304 or Aluminium alloy
Description
Flat plate pressure water heaters are easy to install. The 3.2mm tempered glass makes it very resistant to mechanical impact and is not as fragile as vacuum tubes. The water tank can withstand 6Bar pressure. Cold water enters the tank forcing hot water out of the tank.
Inner Tank：Stainless Steel 304 2B/316L
Outer Tank ：Stainless Steel 201/304/316L
Insulation layer：50-60mm thick high density polyurethane foam.
Flat Plate;Copper & aluminum welding, Black chrome or Blue titanium coating, ultra white low iron cloth pattern tempered glass, thickness 3.2mm, Glass wool insulation
Frame:Stainless Steel 201 1.0 to 1.2 mm thick/Stainless steel 304 1.0 to 1.2mm thick/Aluminum alloy 1.5 to 1.8mm thick
Frame Angle ；( 45/38/27/15) degrees suitable to flat and slopping roof
Tank Diameter：460mm-580mm
Warranty ;5 Years
Delivery Time:Delivery time within 10 days after receiving deposit
Packing ；Standard Export Packing
Payment Term ：TT
Other free services ：Free installation manual in English,put logo on tank

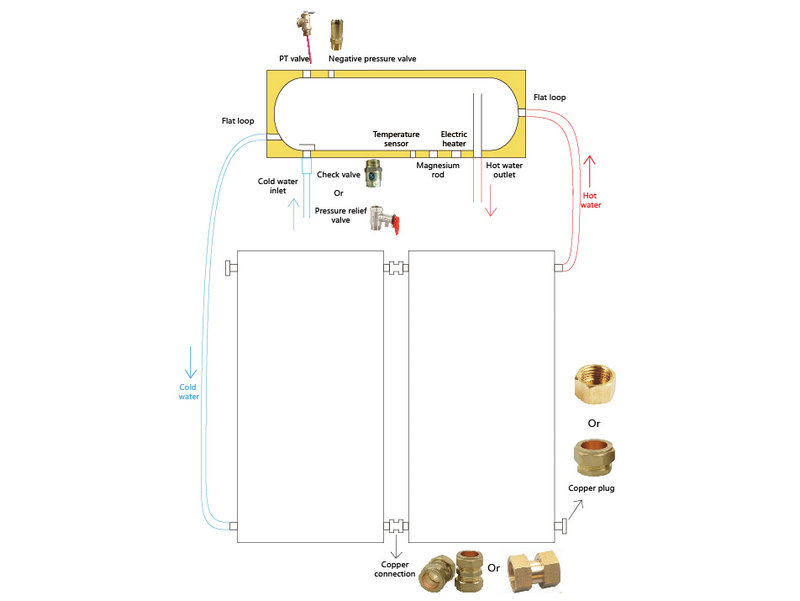

Open Loop Flat Plate Solar Water Heater-Solar Heater Working Principle：
The working principle of flat-panel solar water heaters is simple. Under normal circumstances, sunlight passes through the transparent plate and reaches the collector with a light-absorbing coating on the surface. Most of the sunlight is absorbed by the collector and converted into heat energy that flows to the medium in the flat plate. The cold medium at the bottom of the collector is heated by the solar energy in the channel and heats up. The heated medium will be heated. Bring the solar energy to the outlet above the collector and then into the water tank for backup.
Specialty：
The collector has strong resistance to mechanical impact
Easy to install ：It can connect with water tap and work automatically with pressure0.6Mpa, bringing enjoyable washing experience.
Safety: P/T valve would release pressure and temperature to protect tank.
