Galvanized Steel Heat Pipe Solar Water Heater（Integrated Pressurized Solar Water Heater-Heat Pipe Solar Water Heater）
— Inner Tank: Stainless Steel 304 2B/316L
— Outer Tank: Galvanized steel (Color steel)
— Insulation layer: 50-60mm thick high density polyurethane foam.
— Vacuum Tube: 58-1800mm three target golden purple solar vacuum tube with red copper heat pipe
— Bracket：Galvanized steel (Color steel)
Description：
Heat pipe pressurized solar water heater has high thermal efficiency and can prevent freezing (-40℃). Heat pipe contains thermal medium (antifreeze). The water tank can withstand 6Bar pressure. Cold water enters the tank forcing hot water out of the tank .
Inner Tank ：Stainless Steel 304 2B/316L
Outer Tank ：Galvanized steel (Color steel)
Insulation layer ：50-60mm thick high density polyurethane foam.
Vacuum Tube ：58-1800mm three target golden purple solar vacuum tube with red copper heat pipe
Frame ：Galvanized steel (Color steel)1.2 to 1.5mm thick
Frame Angle ：( 45/38/27/15) degrees suitable to flat and slopping roof
Tank Diameter ：460mm-500mm
Warranty ：5 Years
Delivery Time ：Delivery time within 10 days after receiving deposit
Packing ：Standard Export Packing
Payment Term ：TT
Other free services ：Free installation manual in English,put logo on tank and tubes

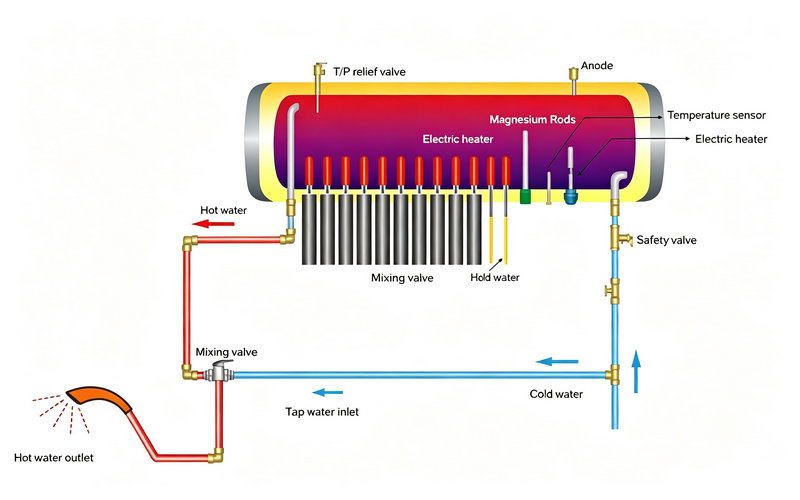

Solar Heater Working Principle ：
Compact Pressurized Solar Water Heater,Work with high pressure. Therefore, the warm water comes out with pressure too. It uses the heat pipe to deliver heat energy, water is heatedrapidly. Each tube can work alone, so it can work even if one tube is broken.
Specialty
High thermal performance and working temperature: the heat exchanging rate even in winter can up above 55%.
Heat collecting efficiency is at least 20% above common solar systems.
Work in all day and all season: no matter any corner of the world, this system can work well even -40℃ to avoid the tube freezing problem.
Reliability: No water following through the tube, so water scale can not generate and tube cracks could be avoided, the system still can keep working even with some damaged tubes.
It can connect with water tap and work automatically with pressure0.6Mpa, bring enjoyable washing experience.
Safety: P/T valve would release pressure and temperature to protect tank.
